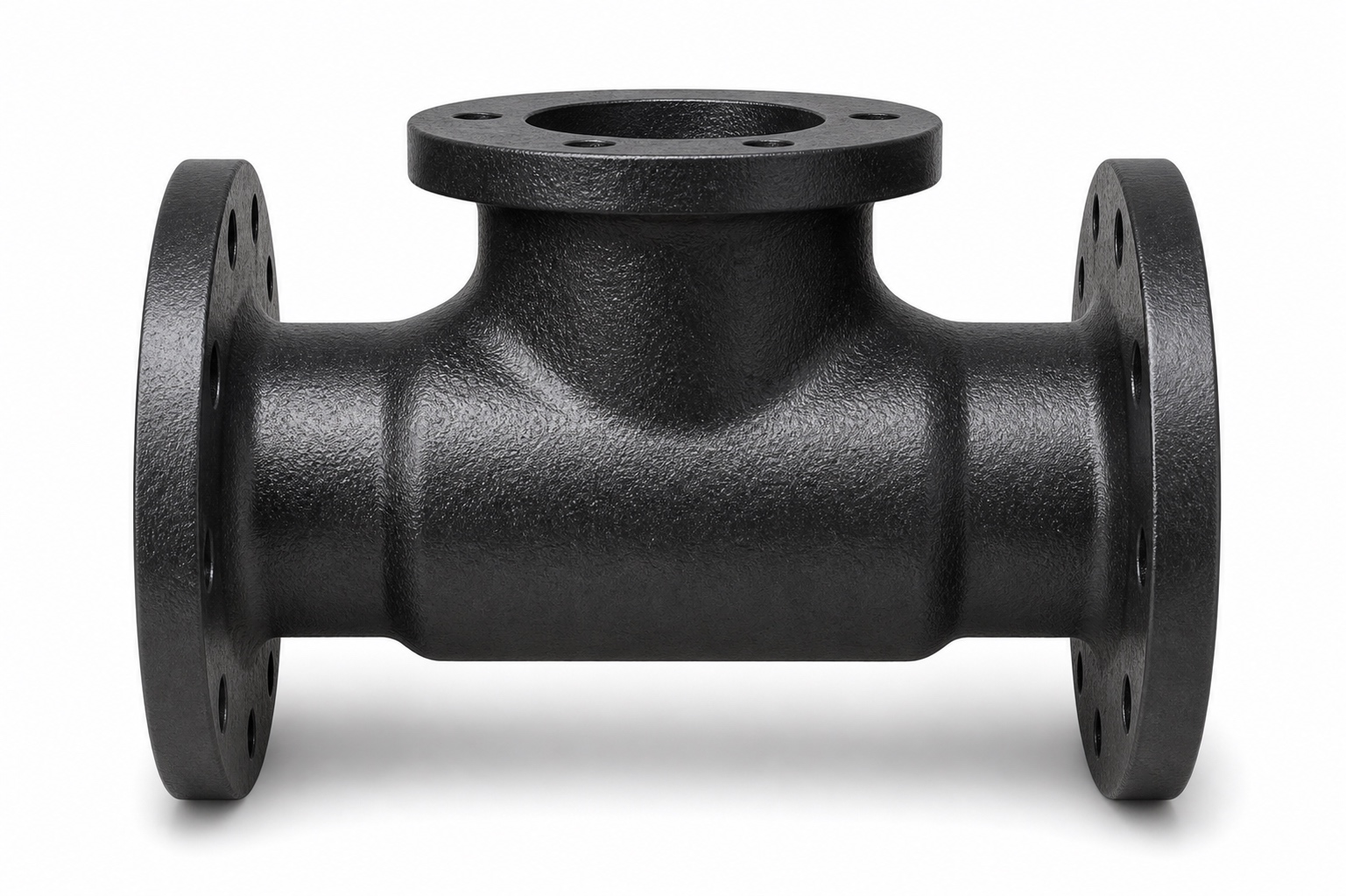

Tee-all flanged
|
|
body
(mm)
|
Branch
(mm)
|
t
(mm)
|
D
(mm)
|
D1
(mm)
|
weight
(kgs)
|
|
80
|
80
|
8.1
|
330
|
165
|
15.6
|
|
|
|
|
|
|
|
100
|
80
|
8.4
|
360
|
175
|
18.4
|
|
|
|
|
|
|
|
100
|
100
|
8.4
|
360
|
180
|
19.4
|
|
|
|
|
|
|
|
125
|
80
|
8.8
|
400
|
190
|
23.0
|
|
|
|
|
|
|
|
125
|
100
|
8.8
|
400
|
195
|
24.0
|
|
|
|
|
|
|
|
125
|
125
|
8.8
|
400
|
200
|
25.5
|
|
|
|
|
|
|
|
150
|
80
|
9.1
|
440
|
205
|
28.5
|
|
|
|
|
|
|
|
150
|
100
|
9.1
|
440
|
210
|
29.5
|
|
|
|
|
|
|
|
150
|
150
|
9.1
|
440
|
220
|
32.5
|
|
|
|
|
|
|
|
200
|
80
|
9.8
|
520
|
235
|
41.5
|
|
|
|
|
|
|
|
200
|
100
|
9.8
|
520
|
240
|
42.0
|
|
|
|
|
|
|
|
200
|
150
|
9.8
|
520
|
250
|
45.5
|
|
|
|
|
|
|
|
200
|
200
|
9.8
|
520
|
260
|
49.0
|
|
|
|
|
|
|
|
250
|
100
|
10.5
|
700
|
275
|
67.0
|
|
|
|
|
|
|
|
250
|
200
|
10.5
|
700
|
325
|
75.0
|
|
|
|
|
|
|
|
250
|
250
|
10.5
|
700
|
350
|
81.0
|
|
|
|
|
|
|
|
300
|
100
|
11.2
|
800
|
300
|
93.0
|
|
|
|
|
|
|
|
300
|
200
|
11.2
|
800
|
350
|
101.0
|
|
|
|
|
|
|
|
300
|
300
|
11.2
|
800
|
400
|
115.0
|
|
|
|
|
|
|
|
350
|
100
|
11.9
|
850
|
325
|
122.0
|
|
|
|
|
|
|
|
350
|
200
|
11.9
|
850
|
325
|
128.0
|
|
|
|
|
|
|
|
350
|
350
|
11.9
|
850
|
425
|
151.0
|
|
|
|
|
|
|
|
400
|
100
|
12.6
|
900
|
350
|
154.0
|
|
|
|
|
|
|
|
400
|
200
|
12.6
|
900
|
350
|
159.0
|
|
|
|
|
|
|
|
400
|
400
|
12.6
|
900
|
450
|
191.0
|
|
|
|
|
|
|
|
500
|
100
|
14.0
|
1000
|
400
|
241.0
|
|
|
|
|
|
|
|
500
|
200
|
14.0
|
1000
|
400
|
245.0
|
|
|
|
|
|
|
|
500
|
400
|
14.0
|
1000
|
500
|
276.0
|
|
|
|
|
|
|
|
500
|
500
|
14.0
|
1000
|
500
|
297.0
|
|
|
|
|
|
|
|
600
|
200
|
15.4
|
1100
|
450
|
358.0
|
|
|
|
|
|
|
|
600
|
400
|
15.4
|
1100
|
550
|
387.0
|
|
|
|
|
|
|
|
600
|
600
|
15.4
|
1100
|
550
|
434.0
|
|
|
|
|
|
|
|
|
|
| |
|

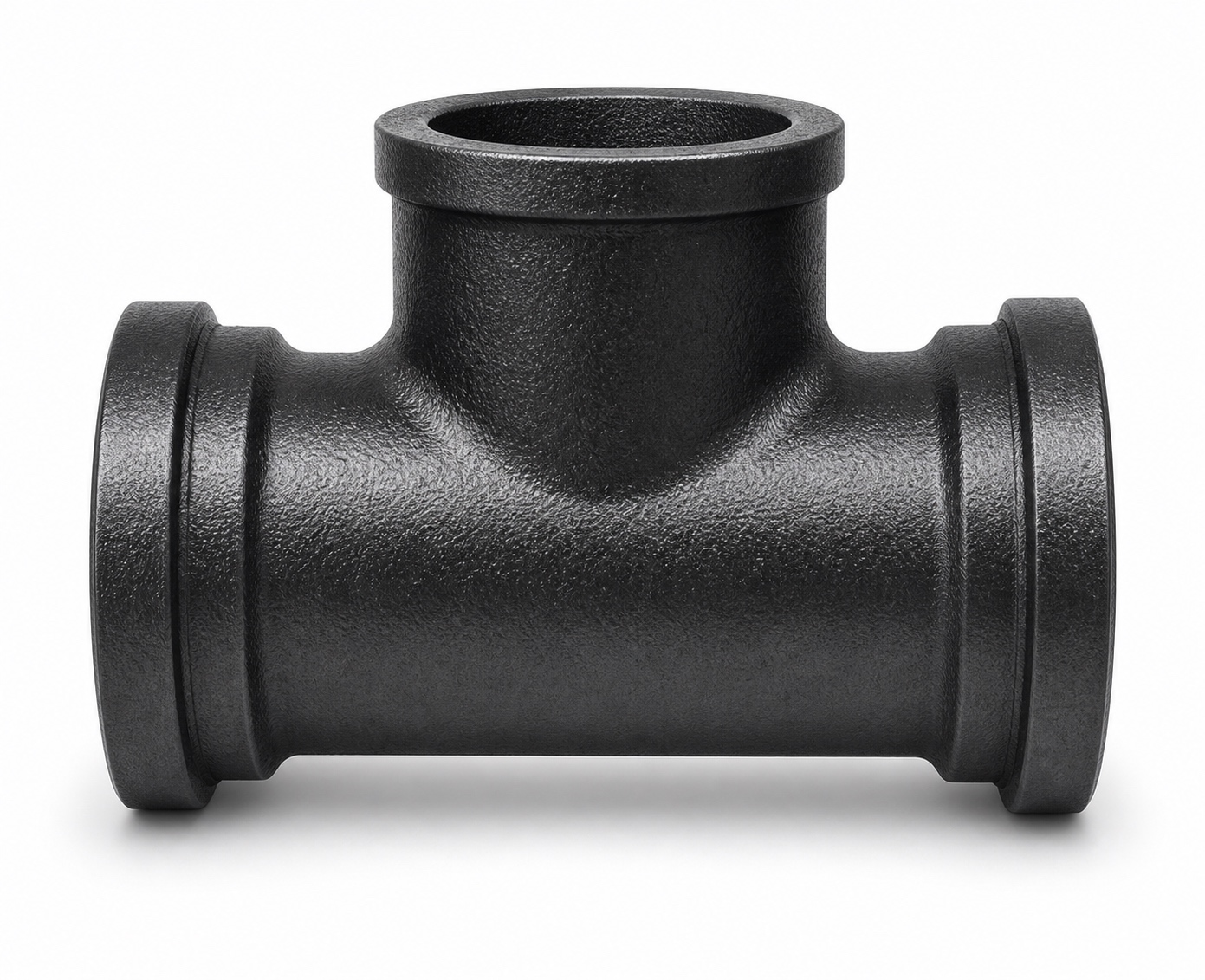

Tee-All Sockets
|
|
body
(mm)
|
Branch
(mm)
|
t
(mm)
|
F
(mm)
|
D
(mm)
|
weight
(kgs)
|
|
80
|
80
|
8.1
|
170
|
165
|
13.5
|
|
|
|
|
|
|
|
100
|
80
|
8.4
|
170
|
175
|
15.8
|
|
|
|
|
|
|
|
100
|
100
|
8.4
|
190
|
180
|
17.2
|
|
|
|
|
|
|
|
125
|
80
|
8.8
|
170
|
190
|
19.4
|
|
|
|
|
|
|
|
125
|
100
|
8.8
|
195
|
195
|
21.0
|
|
|
|
|
|
|
|
125
|
125
|
8.8
|
225
|
200
|
23.0
|
|
|
|
|
|
|
|
150
|
80
|
9.1
|
170
|
205
|
23.0
|
|
|
|
|
|
|
|
150
|
100
|
9.1
|
195
|
210
|
24.5
|
|
|
|
|
|
|
|
150
|
150
|
9.1
|
225
|
220
|
29.5
|
|
|
|
|
|
|
|
200
|
80
|
9.8
|
175
|
235
|
31.5
|
|
|
|
|
|
|
|
200
|
100
|
9.8
|
200
|
240
|
33.5
|
|
|
|
|
|
|
|
200
|
150
|
9.8
|
255
|
250
|
39.0
|
|
|
|
|
|
|
|
200
|
200
|
9.8
|
315
|
260
|
46.0
|
|
|
|
|
|
|
|
250
|
100
|
10.5
|
200
|
275
|
43.5
|
|
|
|
|
|
|
|
250
|
200
|
10.5
|
315
|
290
|
57.0
|
|
|
|
|
|
|
|
250
|
250
|
10.5
|
375
|
300
|
66.0
|
|
|
|
|
|
|
|
300
|
100
|
11.2
|
205
|
300
|
55.0
|
|
|
|
|
|
|
|
300
|
200
|
11.2
|
320
|
320
|
70.0
|
|
|
|
|
|
|
|
300
|
300
|
11.2
|
490
|
340
|
91.0
|
|
|
|
|
|
|
|
350
|
100
|
11.9
|
205
|
330
|
68.0
|
|
|
|
|
|
|
|
350
|
200
|
11.9
|
325
|
350
|
86.0
|
|
|
|
|
|
|
|
350
|
350
|
11.9
|
495
|
380
|
120.0
|
|
|
|
|
|
|
|
400
|
100
|
12.6
|
210
|
360
|
83.0
|
|
|
|
|
|
|
|
400
|
200
|
12.6
|
325
|
380
|
102.0
|
|
|
|
|
|
|
|
400
|
400
|
12.6
|
560
|
420
|
156.0
|
|
|
|
|
|
|
|
500
|
100
|
14.0
|
215
|
420
|
116.0
|
|
|
|
|
|
|
|
500
|
200
|
14.0
|
330
|
440
|
141.0
|
|
|
|
|
|
|
|
500
|
400
|
14.0
|
565
|
480
|
205.0
|
|
|
|
|
|
|
|
500
|
500
|
14.0
|
680
|
500
|
247.0
|
|
|
|
|
|
|
|
600
|
200
|
15.4
|
340
|
500
|
189.0
|
|
|
|
|
|
|
|
600
|
400
|
15.4
|
570
|
540
|
268.0
|
|
|
|
|
|
|
|
600
|
600
|
15.4
|
800
|
580
|
366.0
|
|
|
|
|
|
|
|
