Non-return flow

Wafer check valve

A compact non-return valve installed between pipeline flanges. Listed PN16 records specify a stainless-steel disc; final materials and installation limits are confirmed per project.

Connection
Wafer
Function
Non-return
Listed disc material
Stainless steel
Listed pressure
PN16
Product data

No payment or account required. Confirm final specifications with our team.

PRODUCT OVERVIEW

Key design features &
specification notes.

  • ↗Wafer installation

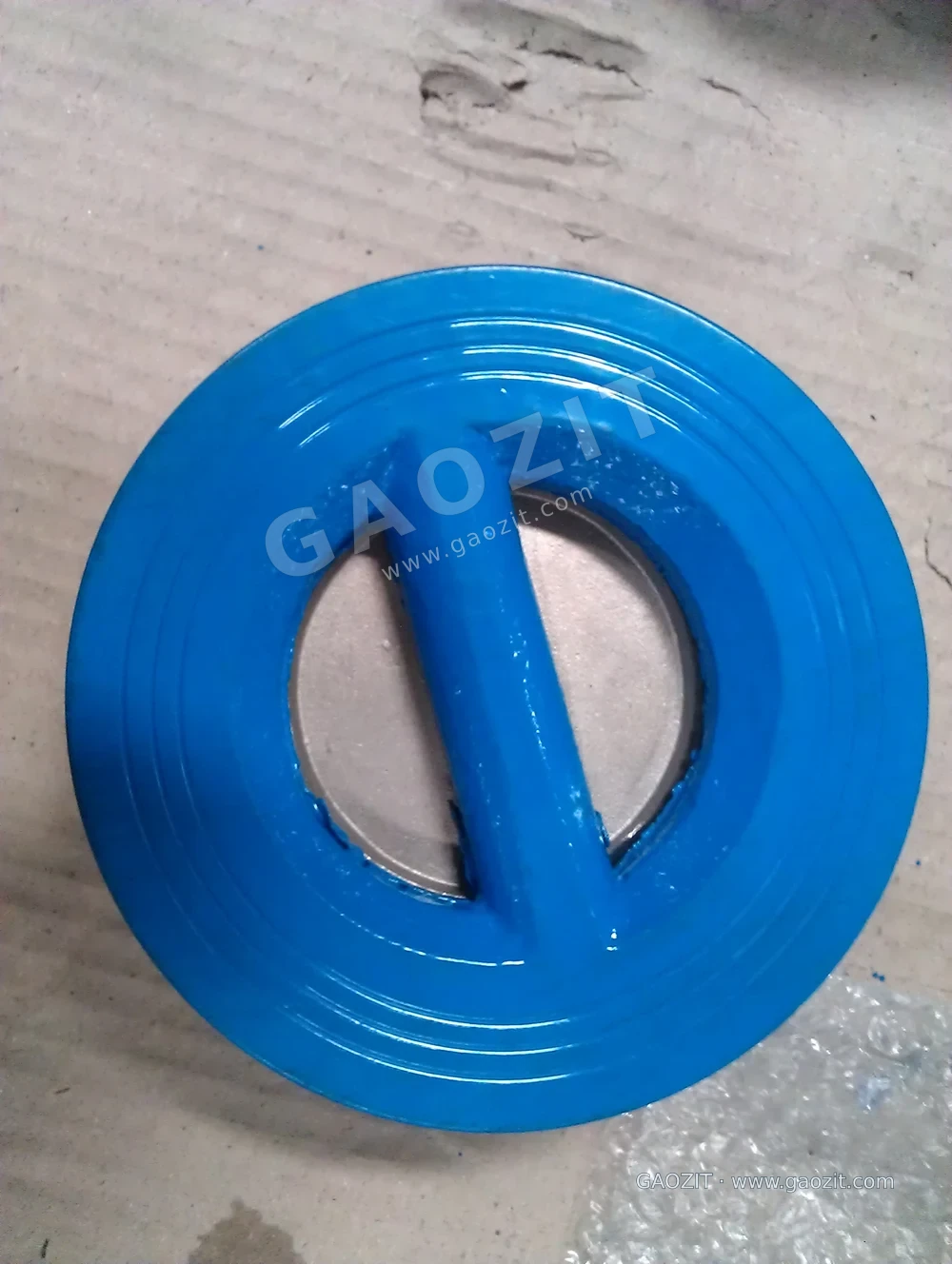

  • ↗Dual-plate sample shown
  • ↗Listed stainless-steel disc configuration

SELECTED CONFIGURATIONS

Product specifications

Dimensions in mm unless stated
Selected configurations for Wafer check valve
ConfigurationNominal sizePressureLength / ODAdd to inquiry
DN100 · PN16 · SS discDN100PN16To drawing
DN150 · PN16 · SS discDN150PN16To drawing
DN200 · PN16 · SS discDN200PN16To drawing
DN250 · PN16 · SS discDN250PN16To drawing
DN300 · PN16 · SS discDN300PN16To drawing
DN350 · PN16 · SS discDN350PN16To drawing
DN80 · PN16 · SS discDN80PN16To drawing

The table lists selected configurations, not stock availability. Product photographs illustrate the series; dimensions and documentation are confirmed for the ordered configuration.

PROJECT DOCUMENTATION

Drawings & supporting
documentation.

Request the dimensional drawing, material details and test documents relevant to your selected configuration. The product data download summarises the information listed on this page.

IN YOUR ENQUIRY

Points to confirm on order.

  1. Mating flange details and installation orientation
  2. Disc, body and seat materials
  3. Service conditions and required test evidence
↧
Selected product data

Configuration table · CSV

Download →
Printable product sheet →

PROJECT & QUOTATION ENQUIRIES

Send your bill of quantities
or technical drawings.

Provide the product series, DN or opening size, pressure or load class, quantity and destination port for a structured specification review and quotation.
