Flanged fittings

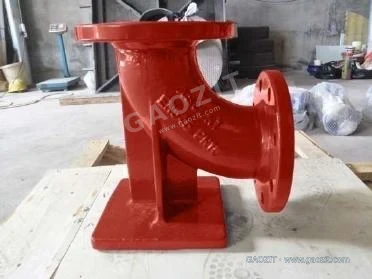

90° flanged duckfoot bend

A 90° change of direction with two flanged ends and a supporting foot. Select nominal diameter and flange pressure together.

Geometry
90° duckfoot bend
Connection
Double flanged
Material family
Ductile iron
Dimensional series
A/B common for the listed selection
Product data

No payment or account required. Confirm final specifications with our team.

PRODUCT OVERVIEW

Key design features &
specification notes.

  • ↗Two flanged connections
  • ↗Integral supporting foot
  • ↗Dimensional series stated with the selected configuration

SELECTED CONFIGURATIONS

Product specifications

Dimensions in mm unless stated
Selected configurations for 90° flanged duckfoot bend
ConfigurationNominal sizePressureLength / ODAdd to inquiry
DN40 · PN16 · L 140 mm · 90° · A/BDN40PN16140 mm
DN50 · PN16 · L 150 mm · 90° · A/BDN50PN16150 mm
DN65 · PN16 · L 165 mm · 90° · A/BDN65PN16165 mm
DN125 · PN16 · L 200 mm · 90° · A/BDN125PN16200 mm
DN150 · PN16 · L 220 mm · 90° · A/BDN150PN16220 mm

The table lists selected configurations, not stock availability. Product photographs illustrate the series; dimensions and documentation are confirmed for the ordered configuration.

REFERENCE DIMENSION DIAGRAM

Reference diagram, not a project-approved manufacturing drawing. Use the selected configuration and request a confirmed drawing before ordering.

IN YOUR ENQUIRY

Points to confirm on order.

  1. Flange drilling and mating dimensions
  2. Support footprint and installation space
  3. Lining, coating and service medium
↧
Selected product data

Configuration table · CSV

Download →
Printable product sheet →

PROJECT & QUOTATION ENQUIRIES

Send your bill of quantities
or technical drawings.

Provide the product series, DN or opening size, pressure or load class, quantity and destination port for a structured specification review and quotation.
